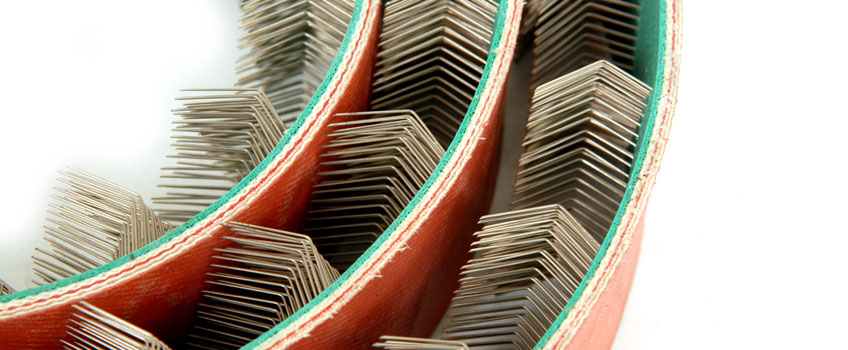

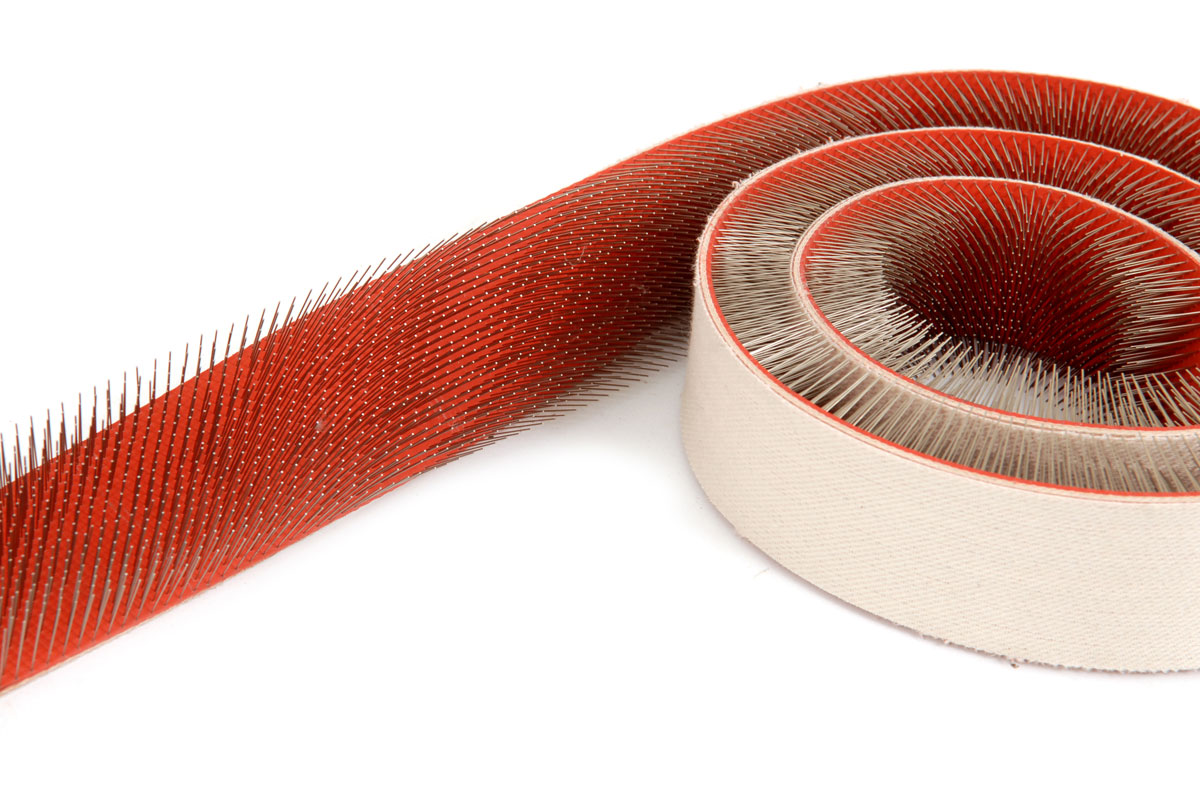

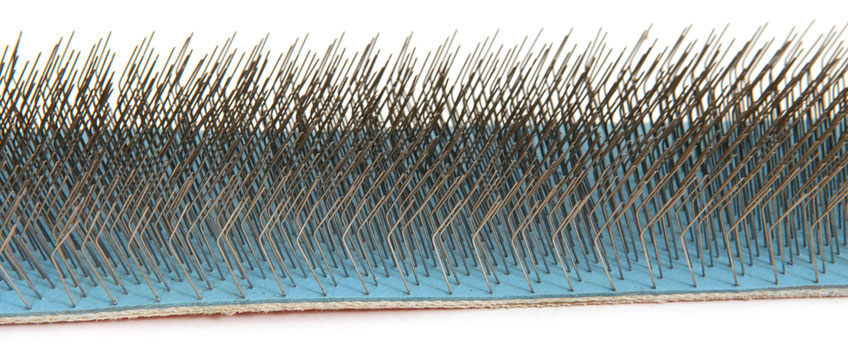

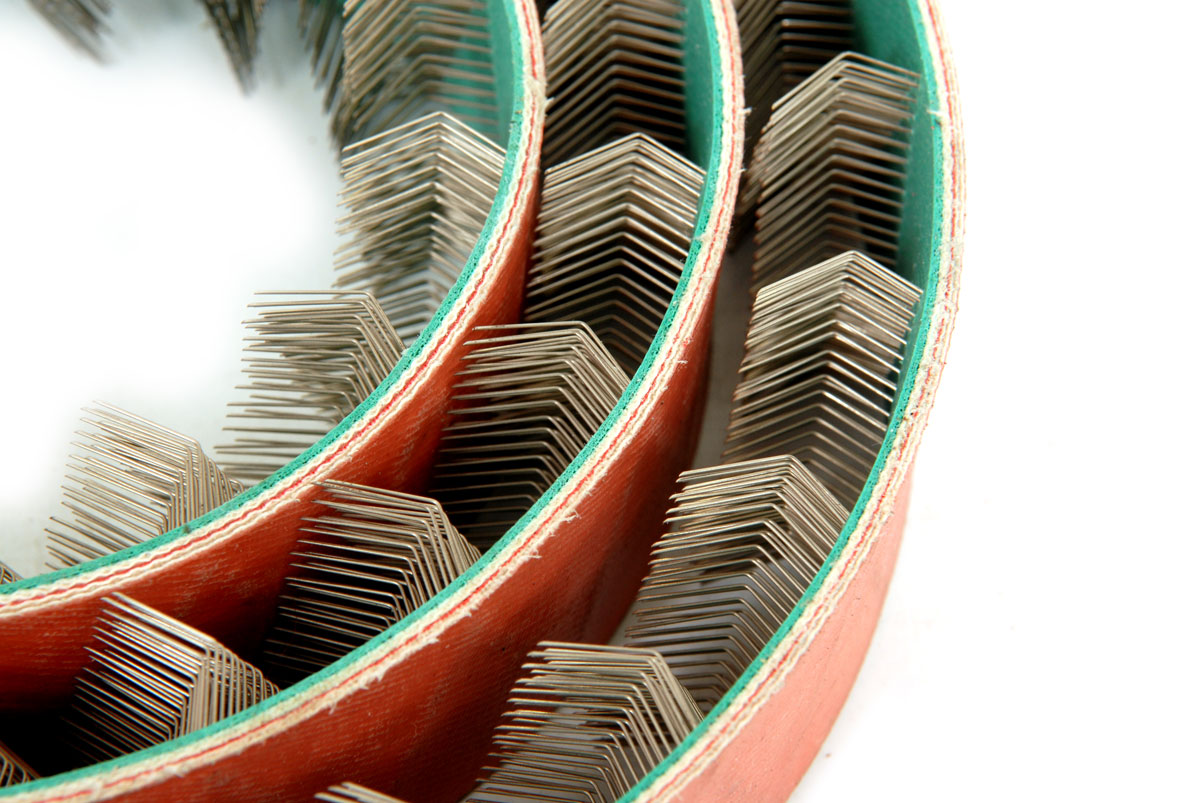

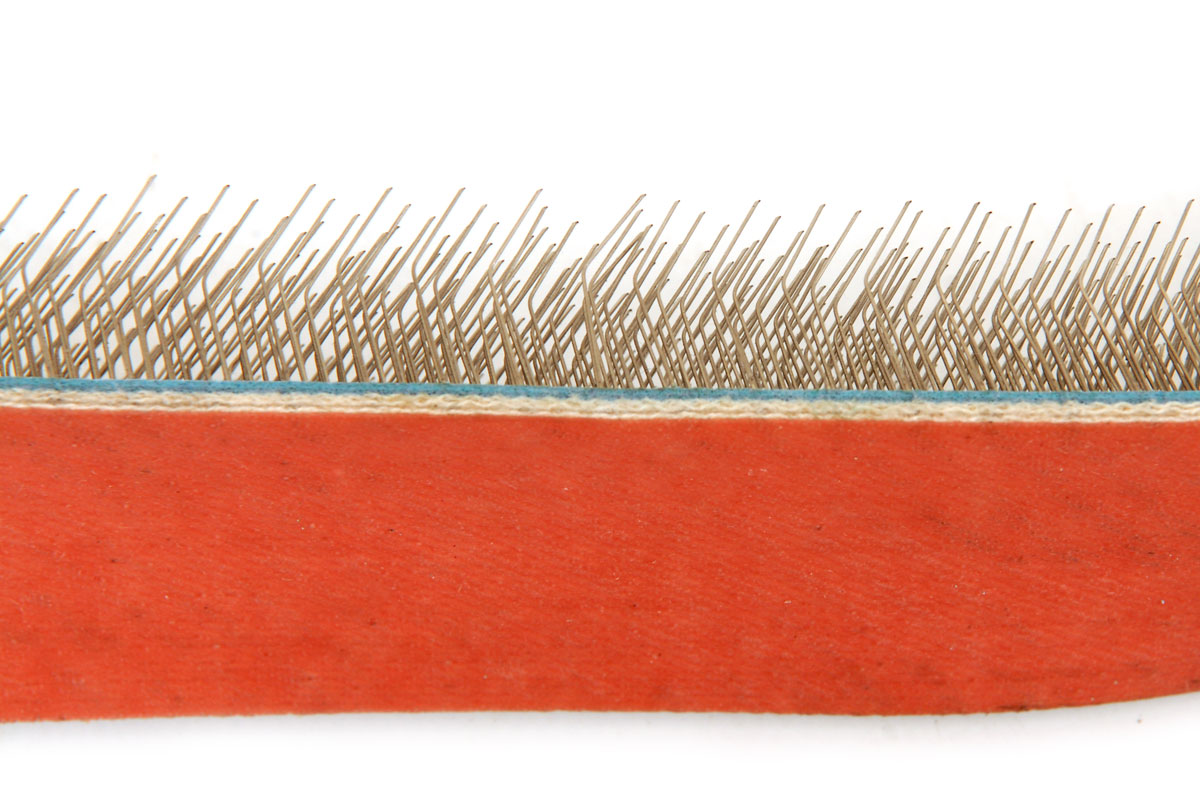

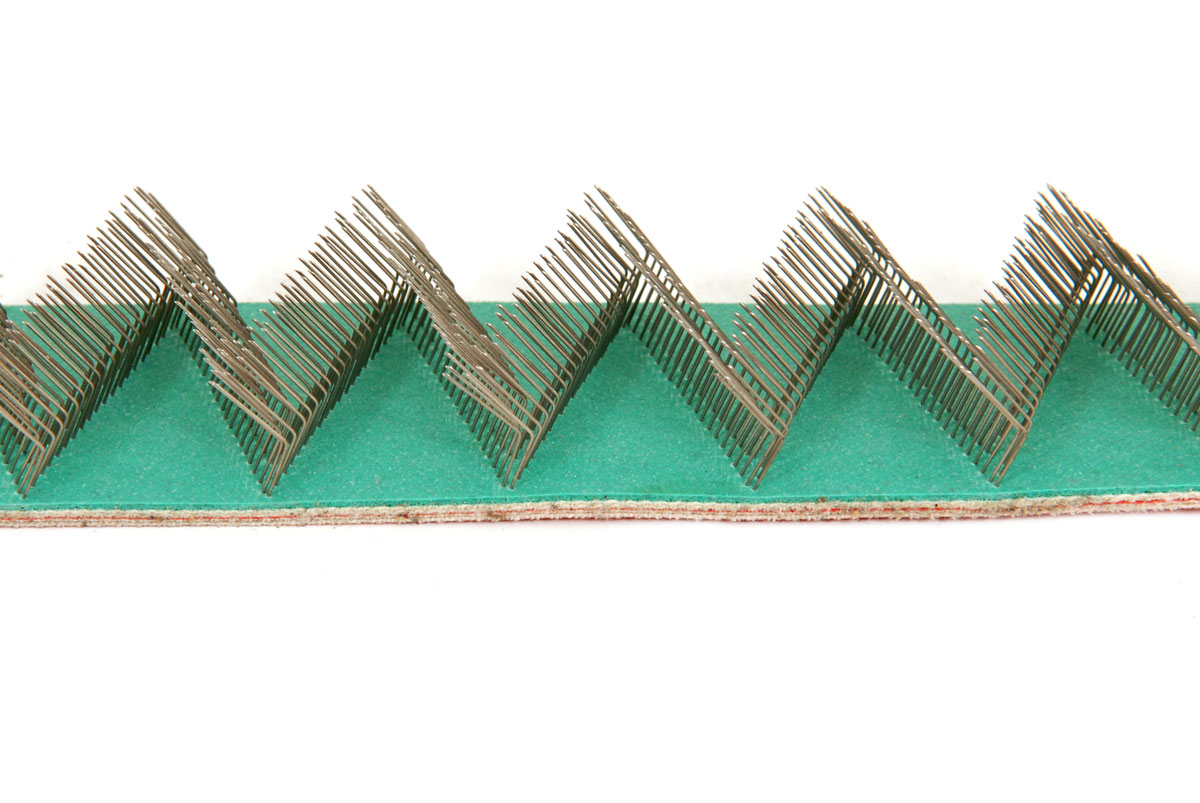

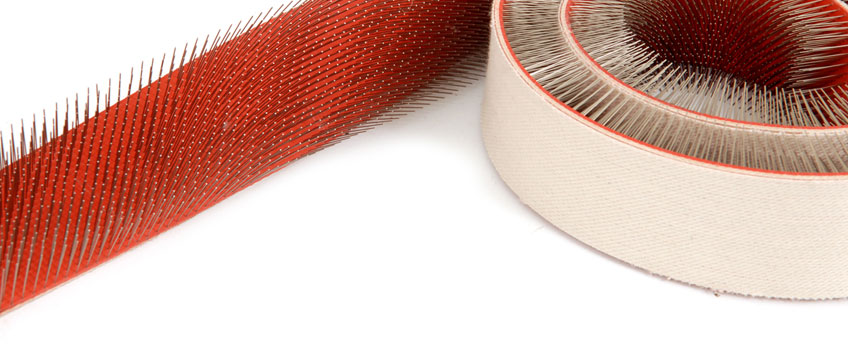

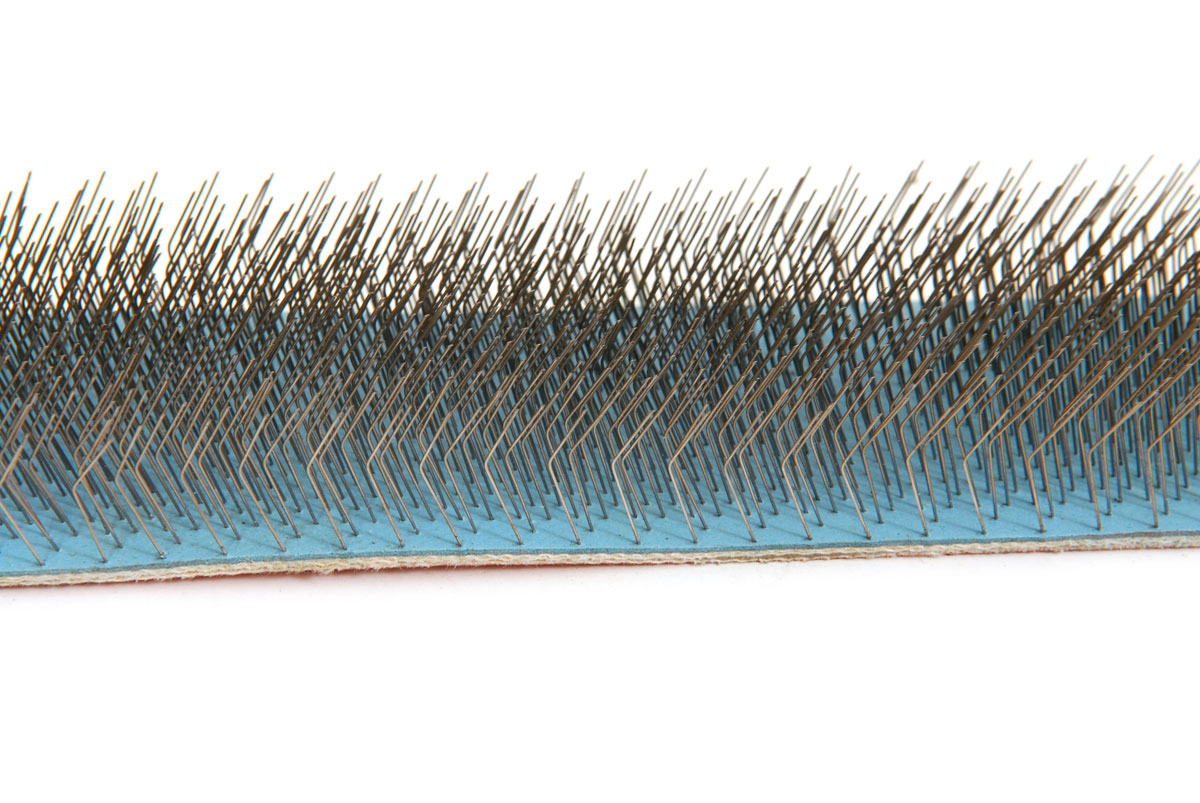

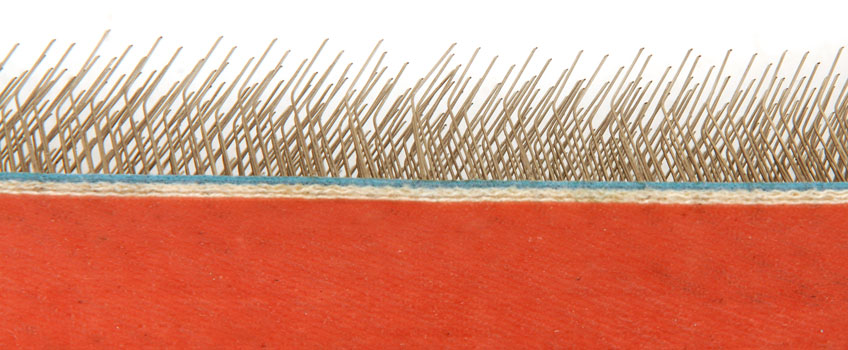

Cleaning fillets are contribute to a high efficiency of the carding machine. Also they are important to maintain the card wires and tops in a good condition.
HCC offers a complete range of cleaning fillets. Our fillets are made out of the best quality foundation and wire available. We are able to manufacture cleaning fillets for Rieter, Trützschler, Crosrol and Marzoli machines. Our production range includes, but is not limited to, the fillets is the below schedule:
Rieter Fillets
| Fillet Code | Wire No | Foundation | Height (mm) | Width (mm) | Length (m) |
|---|
| CR1 | 6 | 6 Ply Grey VIR | 18.50 | 33.5/15 | 1.010/1.006 |
| DR11 | 22 | 5 Ply Grey VIR | 18.20 | 25.00 | 11.00 |
| DR17 | 24 | 3 Ply Grey VIR | 17.00 | 19.00 | 12.00 |
| DBZ4 | 10 | 9 Ply Grey VIR | 8.00 | 46/40 | 10.70 |
| DBZ8 | 18 | 5 Ply Grey VIR | 8.00 | 27.5/25 | 15.50 |
| FB14 | 18 | 3 Ply Red Rubber | 26.00 | 29/19 | 1.032/1.030 |
| FB21 | 22 | 3 Ply Red Rubber | 26.00 | 25/19 | 1.200/1.176 |
| FB24 | 20 | 4 Ply Grey VIR | 10.50 | 48/31 | 1.037/1.035 |
Trützschler Fillets
| Fillet Code | Wire No | Foundation | Height (mm) | Width (mm) | Length (m) |
|---|
| TR-DS | 22 | 2 Ply Cushion | 20.00 | 38.00 | 10.00 |
| TR-DP | 18 | 4 Ply Grey VIR Backed | 17.00 | 25.00 | 10.50 |
| TR-AP | 24 | 3 Ply Red Rubber Backed | 17.00 | 19.00 | 15.00 |
Crosrol Fillets
| Fillet Code | Wire No | Foundation | Height (mm) | Width (mm) | Length (m) |
|---|
| Transfer | 26/30 | 7 Ply Grey VIR | 6.00 | 25.40 | 21.50 |
| CT/CR | 24 | 3 Ply Red Rubber Backed | 10.00 | 19.00 | 16.00 |
| 10C3222 | 4 Ply Grey VIR | 17.00 | 32/21 | 1.020/1.016 |
Marzoli Fillets
| Fillet Code | Wire No | Foundation | Height (mm) | Width (mm) | Length (m) |
|---|
| TR-AP | 24 | 3 Ply Red Rubber Backed | 17.00 | 19.00 | 11.00 |
| Cleaning Strip MKII | 24 | 3 Ply Cushion | 19.00 | 38.00 | 12.00 |
